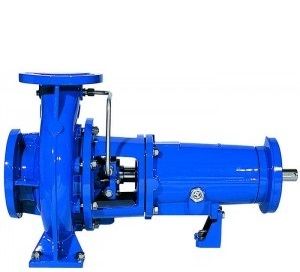

VOGEL LS Serisi NL2-752 Uçtan Emişli Tek Kademeli Ağır Hizmet Tipi Çıplak Pompa
Yorum Yap / Yorumları Oku
Kategori
Marka
Stok Kodu
VOGEL POMPA S1NL2-752
Garanti Süresi
24 Ay
VOGEL S1NL2-752 Uçtan Emişli Tek Kademeli Ağır Hizmet Tipi Çıplak Pompa
PERFORMANS
PERFORMANS
- Delivery: up to 4,600 m³/h
- Head: up to 170 m
- Speed: up to 1750rpm
- Power supply: three-phase 50 and 60 Hz
- Maximum operating pressure: 25 bar
- Temperature up to 210 °C
- Impeller: Cast iron, bronze, stainless steel, duplex
- Casing, casing cover: ductile iron, carbon steel, stainless steel, duplex
- Wear rings: Cast iron, duplex
- Bearing frame: Cast iron
- Shaft: Stainless steel
- Shaft sleeve: Stainless steel, duplex
- Clean and slightly contaminated liquids (without bigger solids)
- Cold and hot water
- Condensate and de-ionized water
- Oil brine and acid
- Type LS:Horizontal single stage endsuction pump with closed impeller and oil lubricated bearing frame. Process design, back pull out for easy maintenance. Disassembly of impeller and bearing frame without dismantling of pump casing and motor possible (spacer type coupling required). Suction branch axial, discharge radial upwards (optional horizontal possible). Drive by electric motor and flexible coupling arranged on common base plate.
- Type LSV: Vertical design with short shaft for dry installation. Bearing frame with grease lubricated antifriction bearings. Motoradapter welded design, drivers IEC electric motors, design V1 and flexible coupling.
- Type LT:Vertical line shaft version. Bearing frame and motor above pit for dry installation. Pumpend flooded by the handled liquid. Radial friction bearing lubricated by handled liquid or with external clean water lubrication. Installation length up to 10m.
- Type LC: Case foot mounts. Foot mounted casing design for operating temperatures up to max. 180°C
- Type LCP: Centerline casing feet. Pocess desiged with centreline casing feet for operating temperatures up to max. 210°C
- General industry, power stations, districut heating
- Chemical industry
- Steel mills and mining
- Sugar industry
- Pulp and paper mills
